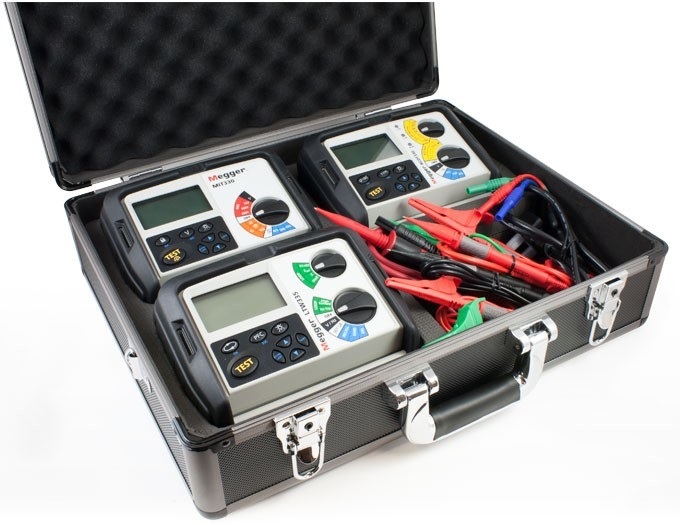

Megger MTK310 MTK320 MTK330 Electrical Installation Test Kits

Code: Megger MTK310 MTK320 MTK330




Datasheet PDF, 0.07 Mb

Description

• Three kit options available

• Rubber armoured instruments

• Weatherproof IP54

• Test leads included

• Calibration certificates included

• 3 year warranty





MTK310: Standard electrical test kit

MIT310 Insulation and continuity tester

LTW315 2 wire earth loop tester

RCDT310 RCD tester



MTK320: Advanced electrical test kit

MIT320 Insulation and continuity tester with insulation and continuity limit alarms

LTW325 2 wire earth loop tester with R1+R2 and MaxZ measurement

RCDT320 RCD tester with programmable RCD testing capability



MTK330: Result storage and downloading test kit

MIT330 Insulation and continuity tester as MIT320 + storage and down loading

LTW335 2 wire earth loop tester as LTW325 + storage and down loading

RCDT330 RCD tester as LT320 + storage and downloading



The MTK300 series test kits cover all the test requirements of the electrical engineer performing electrical inspection and testing on domestic, commercial and industrial installations for single and three phase application



Standard accessories

MTK310 Standard electrical test kit

MIT310, LTW315 and RCDT310 MTK310-EN-BS



MTK320 Advance electrical test kit

MIT320, LTW325 and RCDT320 MTK320-EN-BS



MTK330 Downloading electrical test kit

MIT330, LTW335 and RCDT330 MTK330-EN-BS



Recommended options

Optional Accessories

SPL1000 Illuminating switch probe 6311-089

Powersuite Professional

Pro-Lite 16 Single user licence 6111-695

Contractor 16 Single user licence 6111-697

Industrial Single user licence 6111-699

Power Single user licence 6111-700

SME (Networking) Single user licence 6111-701

PowerSuite PDA Single user licence 6111-743
