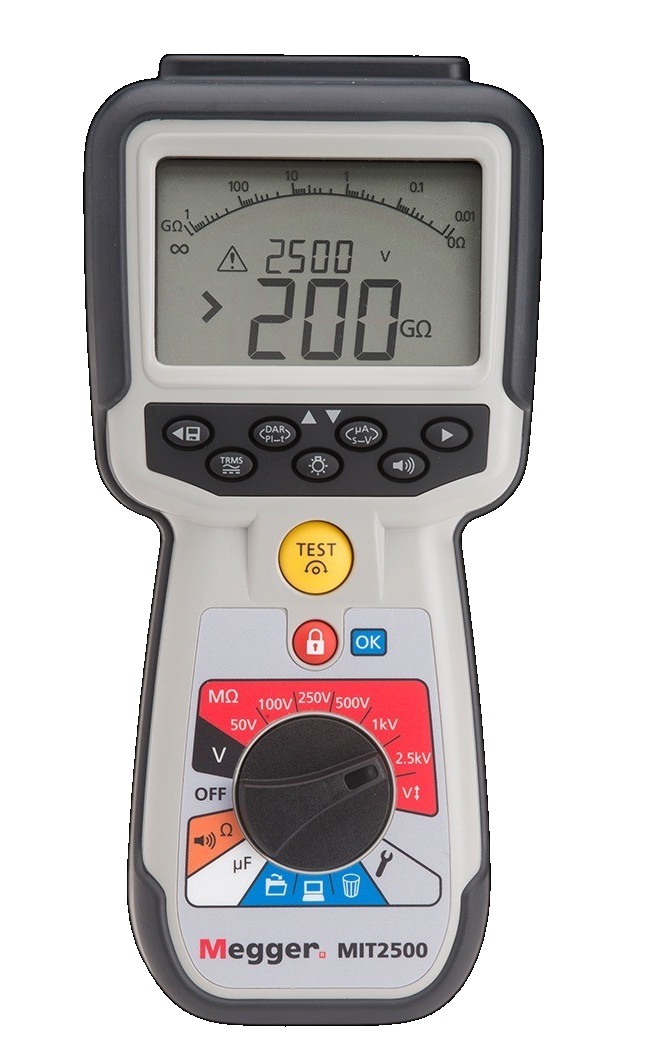

MEGGER MIT2500 2.5kV Insulation Tester

Code: MIT2500 MIT-2500 1004-745




Datasheet PDF, 0.39 Mb

Description

MIT2500 - High voltage handheld insulation and continuity tester
High voltage handheld insulation and continuity tester
Designed for electrical and industrial applications where operation voltages exceed 1000 and higher insulation test voltages are needed.

  • Insulation testing
  • Accuracy for high resistance
  • Additional test functions PI and DAR

About the product
  • Insulation testing up to 2.5 kV  and 200 GΩ range in a handheld instrument
  • Guard terminal for high resistance accuracy
  • Adjustable insulation test voltage from 50 V to 2500 V
  • Stabilised insulation test voltage
  • Rechargeable options for mains and car charging
  • Single range, faster continuity testing from 0.01 Ω to 1 MΩ
  • Polarisation Index (PI) and Dielectric Absorption Ratio (DAR)
  • CAT IV 600 V applications

The MIT2500 high voltage handheld insulation and continuity tester has been designed for motor and cable testing, specialist applications, and electrical testing  applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.

The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V, and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be 'dialled in'. This is supported by the new test voltage feedback control, which maintains the output test voltage to within 2 % of the selected range, even when under test. The feedback-controlled insulation test voltage is now accurate to +2 % -0 % compared to the original +20 %, providing a more accurate test voltage without the risk of overvoltage damage to circuits. A variable range allows the exact test voltage to be selected from 50 V to 999 V in 1 V steps, (1 kV to 2.5 kV in 10 V steps) providing 1100 test voltage options.

The MIT2500 uses a redesigned case, back-stand, and six cell battery compartment, as well as incorporating a guard terminal to reduce surface leakage currents that reduce accuracy at higher voltages. All instruments are over-molded for increased protection and have an IP54 weatherproof rating.


Video presentation on Youtube for MEGGER MIT2500





Standard accessories

Description Order Code
MIT2500 - 50 V to 2500 V insulation tester
+ store and download 1004-745
Included Accessories
Red/Black/Blue silicone test leads with prods and clips
2.5 kV Red/Black/Blue silicone test leads with clips
Batteries 6 x AA Alkaline
Carry Case



Recommended options

Description Order Code
Optional Accessories
Mains Charger kit 1007-464
Switched probe SP5 1007-157
Test lead set and crocodile clips 1002-001
2 wire 500 mA fused test lead set 1002-015
Batteries (6 x NiMH) 1002-735
Magnetic Strap 1010-013
Carry Pouch MIT400/2 Series 1007-887
