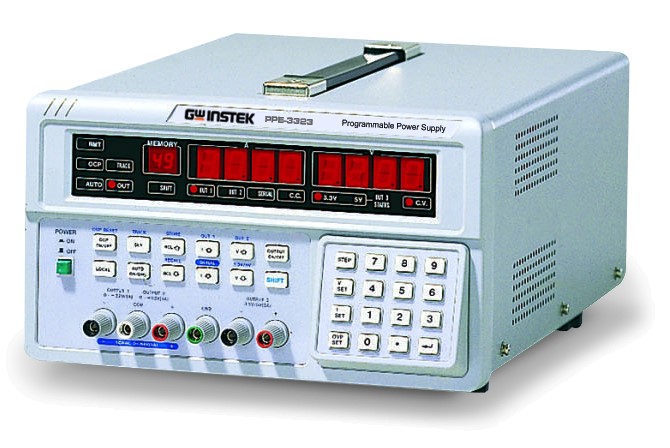

GOODWILL INSTEK PPE-3323

Code: GOODWILL INSTEK PPE-3323




Datasheet PDF, 0.17 Mb


Description

The PPE/PPT Series are 3-channel, programmable linear DC power supplies with 207/138/126W outputs. The PPE/PPT Series feature OVP and OCP protection and are compliant with all major safety standards (UL, CSA, and IEC) for safe, reliable operation. For extra precision, the PPT Series include remote sensing that adds an extra level of precision by compensating cable losses between loads. The digital interface and smart features simplify operation and configuration, such as output limit store/recall functions, automatic tracking, automatic tracking, automatic series or parallel operation (PPT-Series), and auto stepping for continuous testing. The series have Labview drivers and SCPI commands as standard for remote control and PC interfacing via RS232(PPE-3323) and GPIB(PPT-Series). The Versatile PPE/PPT-Series are ideal for high-level applications requiring high resolution, multiple outputs, and an extra level of safety.



Features:

  • Easy operation with UP/DOWN key
  • High resolution: 10mV, 1mA
  • Over voltage protection, over current protection by software
  • 50 Sets memory
  • Self test and software calibration
  • Meets UL, CSA, IEC safety regulation
  • Auto step running with timer setting
  • Triple output
  • Auto tracking

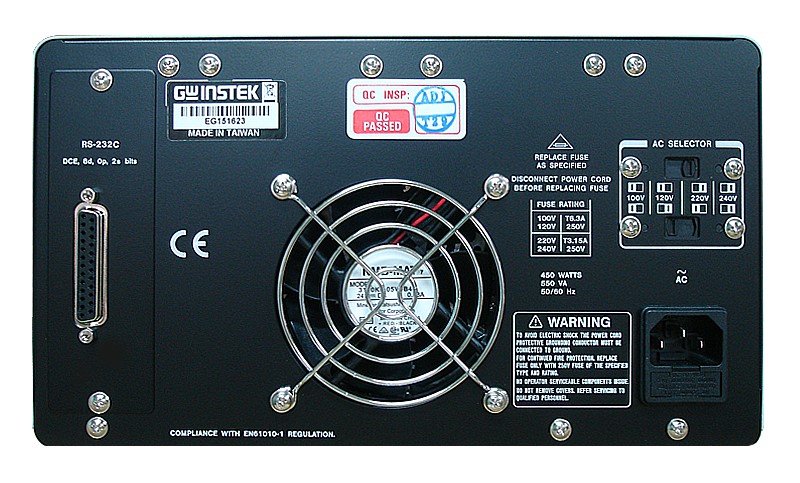

  • RS-232 communication
  • High stability,low drift
  • 4 digit display
