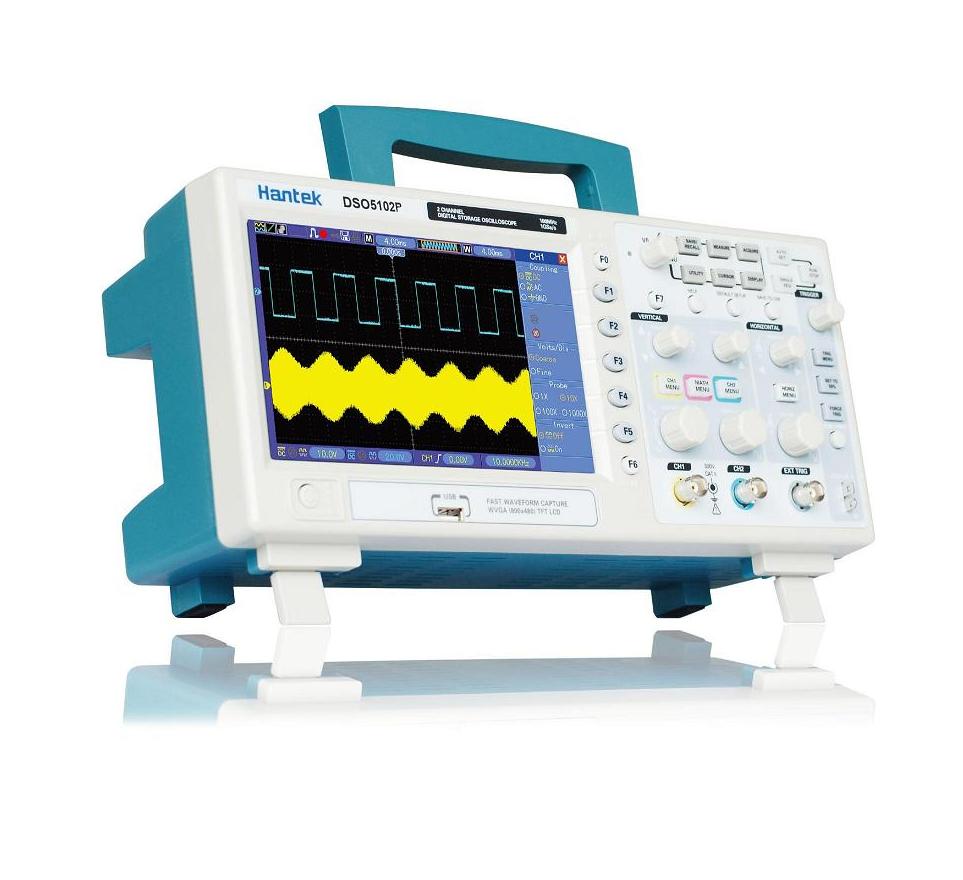

Bandwidth:70-200MHz;
1GSa/s Real Time Sample Rate;
Record length up to 40K;
Multiple automatic measurements;
Large (7.0-inch) color display, WVGA(800x480);
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.

Features:

200/100/70MHz bandwidths
1GSa/s Real Time sample rate
Large (7.0-inch) color display, WVGA(800x480)
Record length up to 40K
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis
