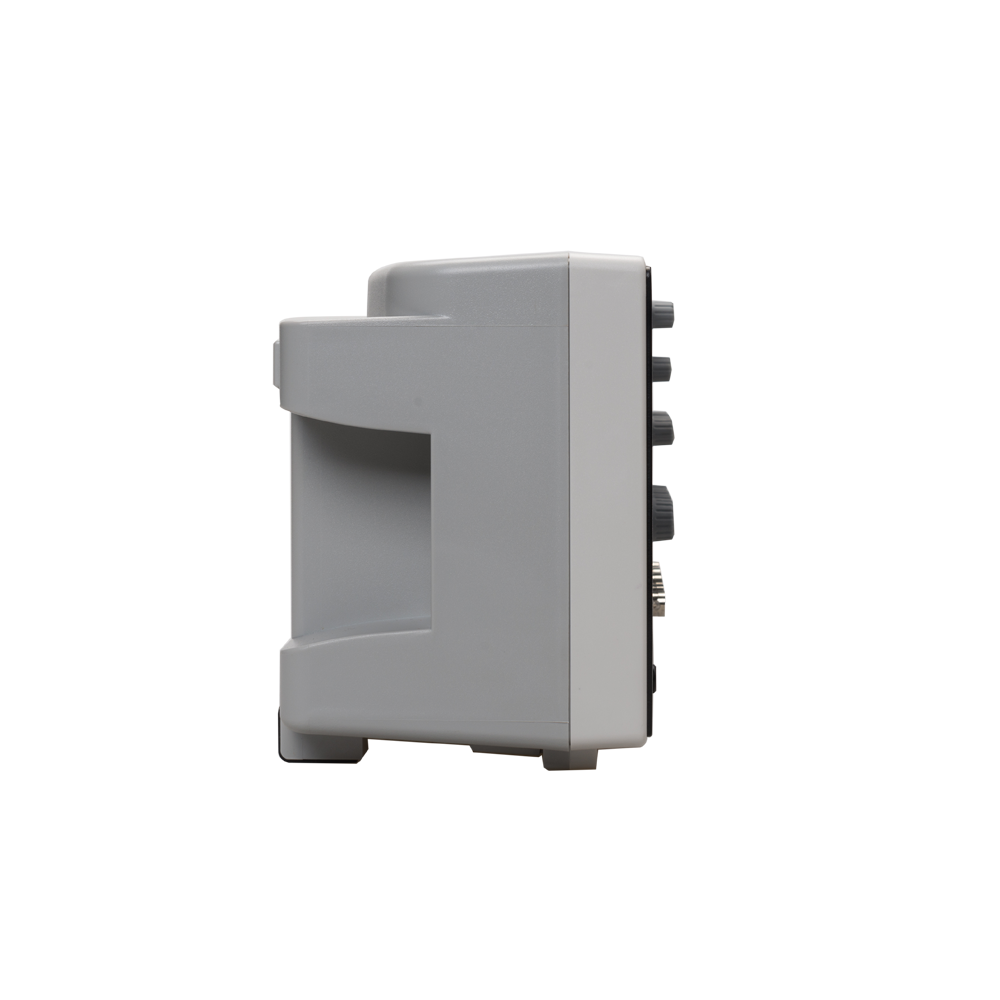

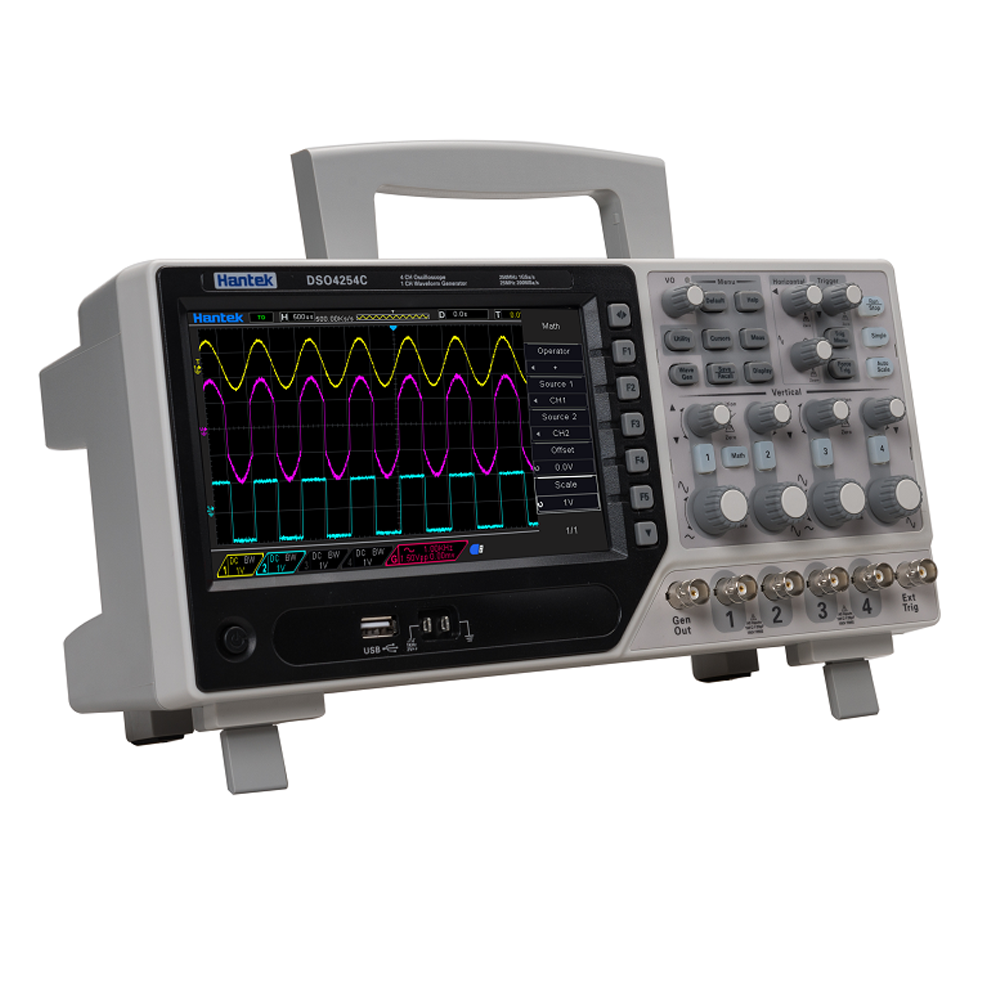

4CH oscilloscope, with 1CH Arbitary/function waveform generator, independent keys of oscilloscope and waveform generator which is easy to operate at the same time.. 80-250MHz bandwidth, minimum measurement range 500Î¼V /div�¼�1GS/s sample rate�¼�advanced digital trigger system, high trigger sensitivity, low trigger jitter�¼�high resolution 7 inch 64K color TFT �¼�800*480�¼�

Features:

4CH oscilloscope+EXT+AFG+DVM+auto range function
80-250MHz bandwidth�¼�minimum range 500Î¼V /div�¼�1GS/s sample rate.
Over 32 types of auto measurement function
Advanced digital trigger system, high trigger sensitivity.
Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.
Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form.
Function/arbitrary signal generator25MHz,12BitS resolution, 200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal wave/impulse wave/DC etc.,easy to simulate the sensor.
Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update.
Support a variety of SCPI remote control command
Support optional RS232 port, LAN port. (Optional)
Stable and reliable quality, sturdy and durable.
