GOODWILL INSTEK GDM-8342 & GDM-8341

Code: GOODWILL INSTEK GDM-8342 & GDM-8341




Datasheet PDF, 4.96 Mb


Description

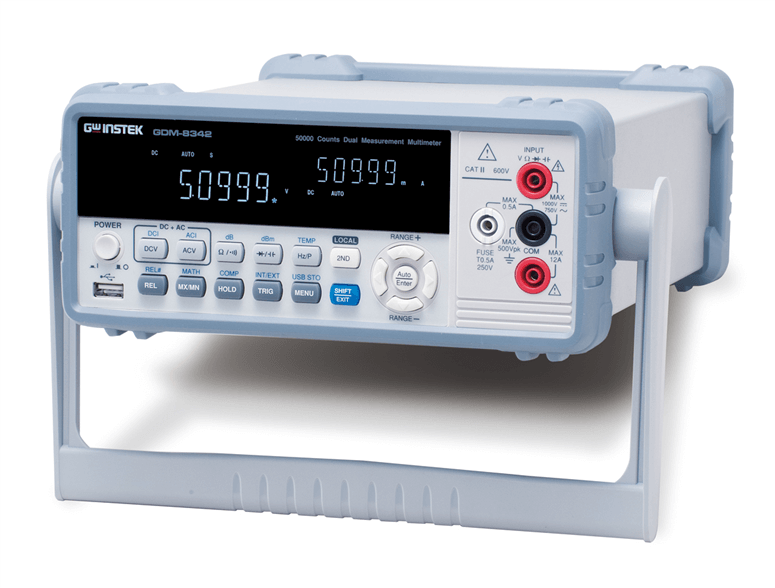

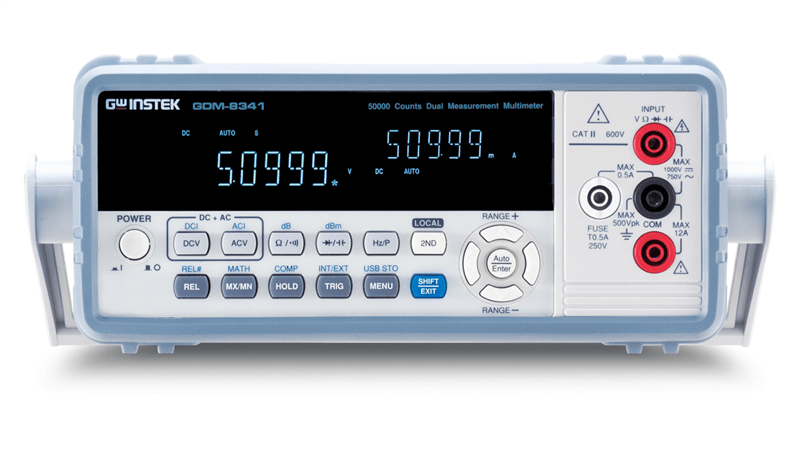

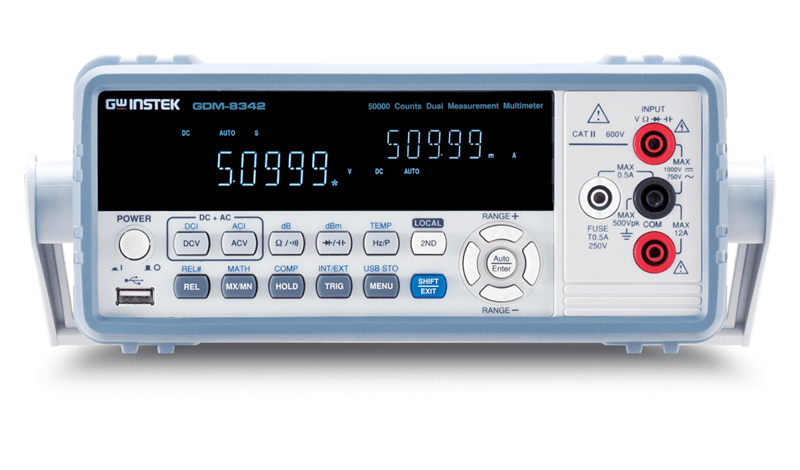

GW INSTEK rolls out the new generation Dual Measurement Multimeter -- the GDM-834x series, which has two models -GDM-8341 and GDM 8342. Its exceptional features include 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, lucid data observation, and the convenience to connect with the personal computer.



The GDM-834x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance and temperature measurement functions. Furthermore, the GDM-834x series also provides many auxiliary functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.



With respect to storing and retrieving data, the GDM-834x series has two methods to offer: first, the USB flash drive storage function --- operating alone without connecting with a computer; second, USB interface (virtual COM port) and optional GPIB interface (must be installed in factory) for automatic measurement system users to conveniently save and retrieve data.



Features:

  • 50,000 counts, VFD display
  • Dual measurement/Dual display
  • Selectable measurement speeds, the maximum: 40 Readings/s for DCV
  • The basic precision of DC voltage: 0.02%
  • Auto/manual Ranging
  • True RMS (AC,AC+DC) measurements
  • 11 different measurement functions
  • Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm
  • Standard USB device interface to connect with a computer
  • Temperature measurement function (GDM-8342 only)
  • USB storage for Data collection (GDM-8342 only)

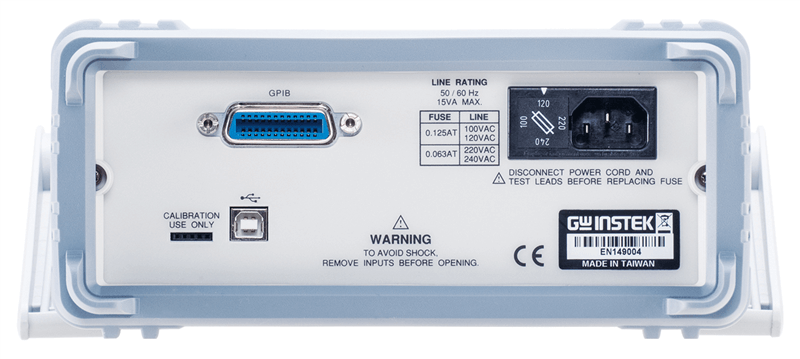

  • Optional GPIB (factory install for GDM-8342)
