1GHz Spectrum Analyzer

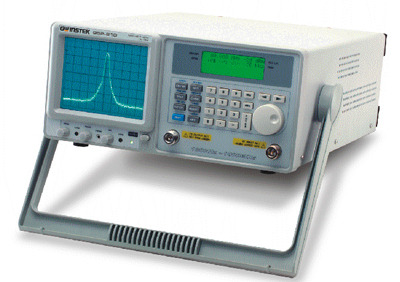

The GSP-810 Spectrum Analyzer is a digitally synthesized, easy-to-use RF measurement instrument with a frequency range up to 1GHz. It uses a state-of-art design with a phased-locked RF system that combines measurement quality and performance with an affordable price. The GSP-810 is also designed for rugged use with 1-watt input protection. With a compact size and feature packed functions, the GSP-810 is an affordable, expandable, and high quality instrument for the most demanding needs.

Standard accessories

User Manual x 1, Power cord x 1

Recommended options

GSP-810 1GHz Spectrum Analyzer

Opt. 01	Tracking Generator		� Frequency range: 150kHz ~ 1GHz � Amplitude range: -50 ~ 0dBm � Amplitude resolution: 1dB � Amplitude accuracy: ±1dB @ 0dBm, 80MHz � Attenuation accuracy: ±1dB @ 50MHz � Amplitude flatness: ±1dB @10MHz/div, 1.5dB @0dB, entire band � Harmonics: < -30dBc (<-25dBc, 150kHz ~ 10MHz) � Reverse power: < +30dBm � Impedance: 50 ohm nominal � Return loss: < 10dB (VSWR < 2) � Connector: Type N female
Opt. 02	Power Meter		� Frequency Range: 10MHz ~ 2 GHz, usable to 2.7GHz � Power Level Range: -20 dBm ~ +23 dBm, usable to +30 dBm � Power Level Overload: +40 dBm < 10% duty cycle, < 10 mS duration � Return Loss: < 1:1.35 VSWR into 50 ohms, < 1:1.25 typical � Readout Resolution: 0.2 mW, 100 mW scale, 2 W, 1 mW scale; 0.1dB, Log scale � Accuracy: ±(10% rdg 1digit) � Readout: mW or dBm
Opt. 03	Remote Control Software		� Connecting PC to get the trace and provide the control for setting
OPTIONAL ACCESSORIES
ATA-001		BNC Antenna (An additional ADP-001 is needed for fitting GSP spectrum analyzers)
ATA-002		Near Field Probe (An additional ADP-001 & GTL-110 is needed for fitting GSP spectrum analyzers)
RLB-001		Return Loss Bridge RLB Frequency Range 10MHz ~ 1GHz
GTP-3000		Passive touch Probe Set PR-03: Passive touch probe, SMA(F) ADP-002: Adaptor, SMA(J/F) ~ N(P/M) GTL-303: RF Cable Assembly, SMA(P/M), 600mm
GKT-001		General Kit set ADP-002: adaptor, SMA(J/F) ~ N(P/M) x 2 ATN-100: 10dB attenuator, N(J/F) ~ N(P/M) x 1 GTL-303: RF cable assembly(SMA(P/M),RD316,600mm)x2 GSC-002: Kit box x 1
GKT-002		CATV Kit set ADP-001: adaptor, BNC(J/F) ~ N(P/M) x 2 ADP-101: adaptor, BNC(J/F)75O ~ BNC(P/M)50Ox 2 GTL-304: RF cable assembly(RG223,N(P/M)-N(J/F),300mm)x2 GSC-003: Kit box x 1
GKT-003		RLB Kit set GAK-001: termination 50 , N(P/M) x 1 GAK-002: Cap with chain, N(P/M) x 1 GTL-302: RF cable assembly(RG223,N(P/M),300mm)x2 GSC-004: Kit box x 1
GKT-006		EMI Probe Kit set ANT-01: 6cm Loop, H-Field Probe x 1 ANT-02: 3cm Loop, H-Field Probe x 1 ANT-03 6mm Stub tip, E- Field Probe x 1 PR-03: Touch Passive Probe x 1 ADP-02: N(P/M)~SMA(J/F) Adapter x 1 ADP-01: N(P/M)~BNC(J/F) Adapter x 1 Test Lead: BNC(P/M)~BNC(P/M) RF Cable x 1 Test Lead: SMA(P/M)~SMA(P/M) RF Cable x 1
GTL-301		RF Cable RG 223 N(P/M), 1000mm
