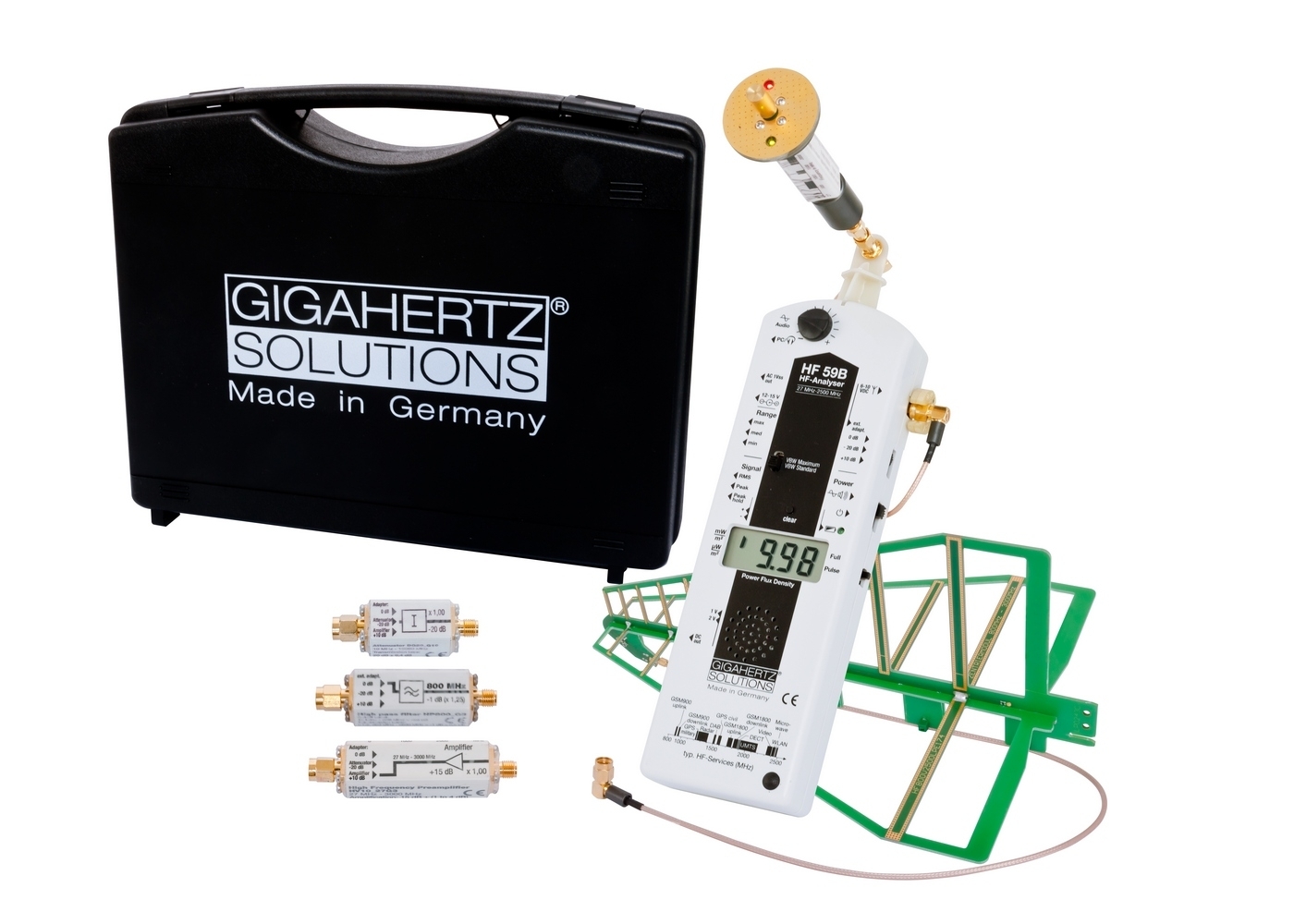

This kit, based on the HF59B, offers an excellent dynamic response of approx. 93 dB. The innovative functions of the basic device HF59B in combination with the broad frequency response of the UBB27 offers outstanding possibilities for the evaluation of high frequency. Its functions and features are tailored to the needs and practical experiences of the building biology. Due to its comparably low price, it is often also used for scientific and industrial purposes, especially in the sector of EMVU and product development (precompliance).

Frequency range: 27 MHz - above 3.3 GHz

Features:

Horizontal isotropic ultra broad bandwidth antenna UBB27_G3 from 27 MHz up to beyond 3.3 GHz (limited by the frequency response of the HF59B).
800 MHz high pass filter HP800_G3 for the suppression of low frequencies when measuring with the log.-per. antenna of the HF59B.
High frequency preamplifier HV10_27G3. Increases the measurement range by 10 dB (by a factor of 10) - important when wanting to reduce the increased noise background in the radar or UMTS/3G-mode.
Attenuator DG20_G3: Increases the maximum measurable value by 20 dB (or by a factor of 100) to 1,999 mW/m² (= 1.999 W/m²).
Plastic case K2 with shaped foam filler for a safe transportation of all components. Offers enough space for yet another Gigahertz Solutions measuring device (high frequency or low frequency).

More products GIGAHERTZ

GIGAHERTZ SOLUTIONS - 3D-LF-ANALYSER WITH DATA LOGGER NFA400

• ONE-dimensional potential-free measurement of the electric field (Y-axis).
• Non-isolated electric field measurement possible with integrated sensor or with the optionally available TCO conform probe TCO3.
• An integrated voice recorder facilitates the measruement analysis.

GIGAHERTZ SOLUTIONS - HF-ANALYSER SET HFW59D PLUS

• Maximum video band width for the demonstration of the shortest radar pulses (< 0.5 µs).
• Optimized Peak Hold function (patent no. DE 103 34 886).
• HV20_2400G10 included for maximum sensitivity within the full frequency range: 0.01 mW/m² display resolution for measurements of weakest WLAN signals.
• Includes an especially shielded log-per antenna with excellent directional characteristics.

GIGAHERTZ SOLUTIONS - LOW FREQUENCY ANALYSER ME3840B

• The measured values are reliably displayed directly in the entity corresponding to the building biology standard values, namely:
• The electric field strength from 1 to 1999 V/m (against ground potential)
• The magnetic flux density from 1 to 1999 nT.

GIGAHERTZ SOLUTIONS - LOW FREQUENCY ANALYSER ME3951A

• Responsivity increased by a factor of 10 (minimum display resolution: 0.1 V/m / 0.1 nT).
• NiMH battery, battery charger / power supply unit included.
• An AC- and a DC-output.

GIGAHERTZ SOLUTIONS - LOW FREQUENCY ANALYSER ME3830B

• A clearly extended frequency range: from 16 Hertz to 100 Kilohertz. This frequency range (in accordance with SBM) also includes the higher frequencies caused by, for instance, energy saving lamps, switching-mode power supplies, electronic dimmers, or monitors, which are considered especially critical.

GIGAHERTZ SOLUTIONS - HF-ANALYZER HFE35C-BASIC

• Audio analyses for the identification of pulsed radiation sources (mobile radio (GSM, UMTS/G3), cordless telephones (DECT), WLAN (Bluetooth), air-traffic control radar) by means of an acoustic signal proportional to the modulation frequency.
• Display of peak value as well as average value (switchable).
• Sensitivity increased by a factor of 10 (from a minimum display resolution of 0.1µW/m² to a maximum of 1999 µW/m²).

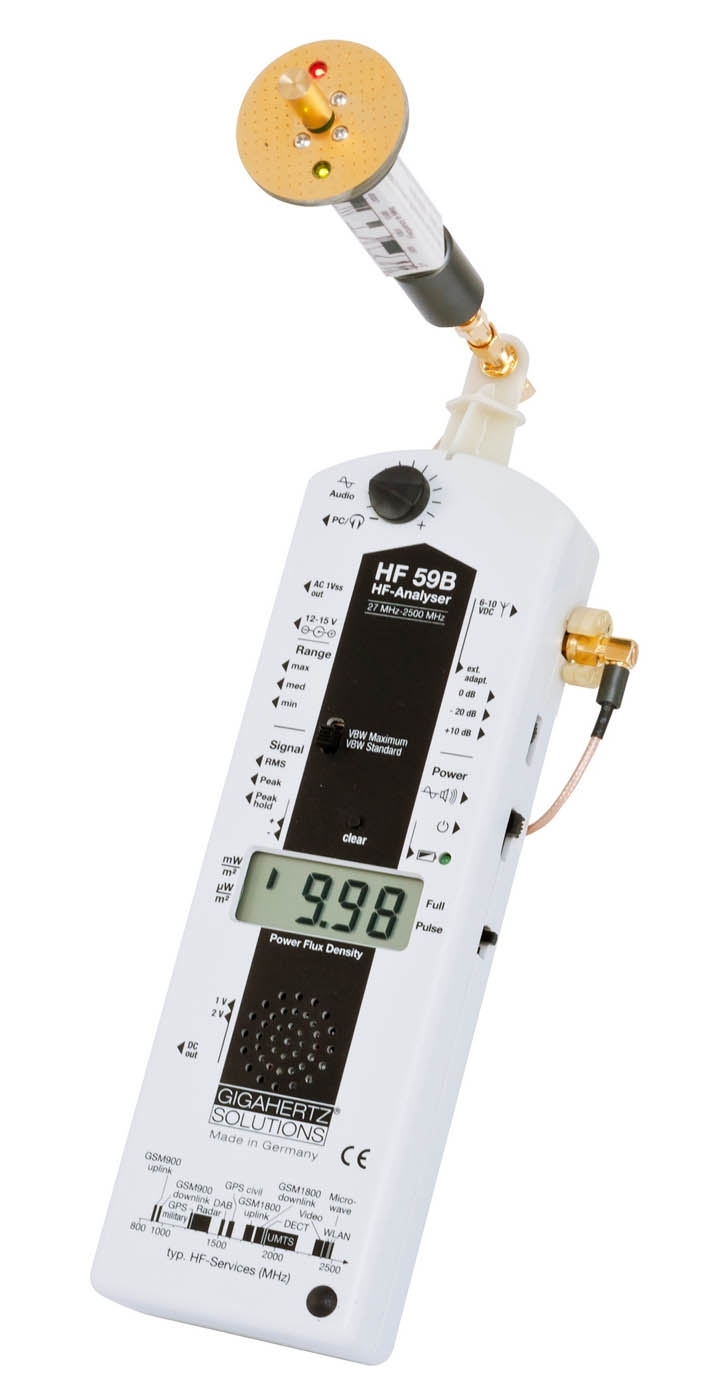

GIGAHERTZ SOLUTIONS - HF-ANALYSER HF59B
