Flir PathfindIR Thermal Camera for Auto Transporters and Drivers
OBSOLET PRODUCT ( * OUT OF USE )

Code: Flir PathfindIR



Datasheet PDF, 0.69 Mb


Description

PathfindIR™



The FLIR Systems PathFindIR is a compact thermal imaging camera that significantly reduces the hazards of night time driving. Automotive Night Vision Systems enable drivers to detect and monitor potential hazards on or near the road, allowing more time to react to any potential danger. PathFindIR Thermal imager helps the user recognize pedestrians, animals, or objects in total darkness, smoke, rain and snow. The PathFindIR module can be integrated into military vehicle designs, or adapted for aftermarket commercial vehicle applications. The PathFindIR is available in 25 Hz PAL / 30 Hz NTSC or 8.3 Hz PAL / 7.5 Hz NTSC.



  • The PathFindIR incorporates an uncooled 320 x 240 pixels microbolometer. This maintenance free system delivers crisp video images which can be displayed on virtually any display that accepts composite video.
  • The PathFindIR is equipped with an 19 mm wide angle lens. It give you an extremely wide field of view (36°), resulting in excellent situational awareness.
  • The PathFindIR is extremely rugged. Its  vital core is well protected against humidity and water. The PathFindIR can be cleaned with a hose just like any other equipment. The PathFindIR operates between -40°C and +80°C.
  • The PathFindIR is extremely compact (5.8 x 5.7 x 7.2 cm) and weighs only 360 grams. This allows for easy integration in any vehicle. The PathFindIR can easily be installed behind a vehicle grill or in any other compact location.
  • A 6 meter long cable is available for routing the PathFindIR’s power and video interface into a passenger compartment. On one side the cable connects to the PathFindIR. On the other end it has 2 wires that can be terminated, as required by the user, for hooking into the vehicle power bus and a video cable that is terminated with a BNC connector. It can be adapted to the video input connections on most standard monitors.



PathfindIR™ Technical Specifications



IMAGING PERFORMANCE

Detector type

Focal Plane Array (FPA), uncooled microbolometer 324 x 256 pixels

Spectral range

8 to 14µm

Field of view

36° (H) x 27° (V) with 19 mm lens

Spatial resolution (IFOV)

2 mrad

Thermal sensitivity

100 mK at +25°C

Image frequency*

8.3 Hz PAL or 7.5 Hz NTSC *

Focus

Automatic (25 m to infinity)

Image processing

Digital Detail Enhancement (DDE)





SYSTEM FEATURES

Time to image

< 2 seconds

Automatic Heater

When window temperature is below +4°C





IMAGE PRESENTATION

Video output

RS170 EIA/NTSC or CCIR/PAL composite video, 75O

Connector types

BNC, with optional pigtail cable





POWER

Requirements

6 - 16 V DC

Consumption

2 W quiescent, 6 W max (with window heater on)





ENVIRONMENTAL SPECIFICATIONS

Operating temperature range

-40°C to +80°C

Storage temperature range

-57°C to +105°C (Extended storage time above +40°C is not recommended due to reduction in service life)

Humidity

6,500 hours at 81%rh at +25°C and salt spray per IEC 60068-2-11Ka

Sand/dust

Mil-Std810

Icing

Heater will defrost 2 mm of ice within 15 minutes at -30°C and wind speed of 100 km/h

Encapsulation

Hermetically sealed enclosure

Shock

5 30g shocks in 2 directions on 3 axes (30 total) 11 mSec duration per IEC 60068-2-27Ea

Vibration

IEC 60068-2-64





PHYSICAL CHARACTERISTICS

Camera Weight

360 grams

Camera Size

57.4 mm x 56.1 mm x 71.4 mm excluding connector which protrudes an additional 28.7 mm

* 30 Hz NTSC or 25 Hz PAL available. Subject to approval of the US Department of Commerce for use outside the USA.

CAUTION:  PathFindIR is designed for the automotive 12 V DC power environment and conforms to ISO 7637-2 requirements for transients and disturbances on the typical automotive power system.  If the PathFindIR is installed in applications other



More products FLIR

FLIR E8 PRO THERMAL CAMERA

• 320 × 240 thermal resolution
• Measures temperatures up to 550°C (1022°F)
• <40 mK thermal sensitivity for maximum clarity and accuracy

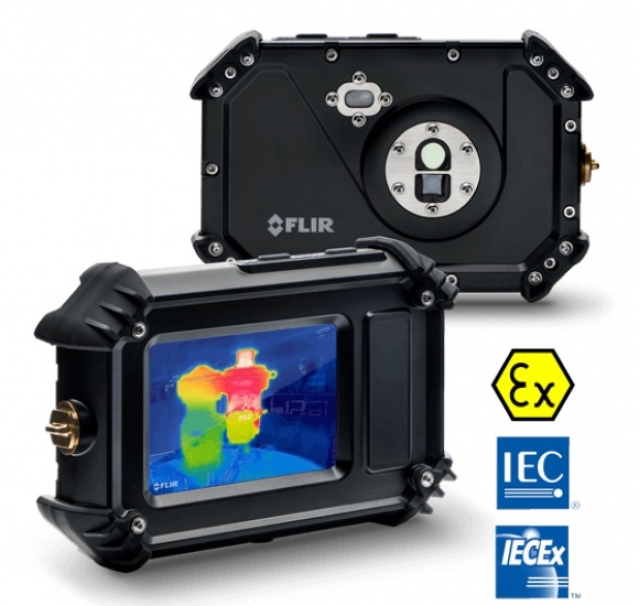

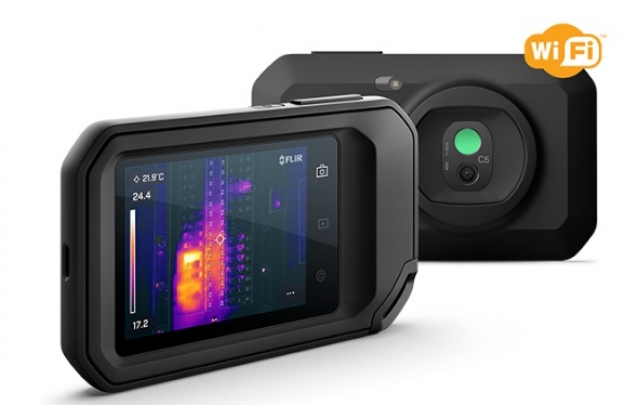

FLIR CX5 COMPACT INFRARED CAMERA WITH ATEX EXPLOSION PROOF FOR HAZARDOUS LOCATION

• Flir C5 features + ATEX housing
• 160 × 120, max temp. 400°C (752°F)
• 1-Touch Level/Span adjustable contrast

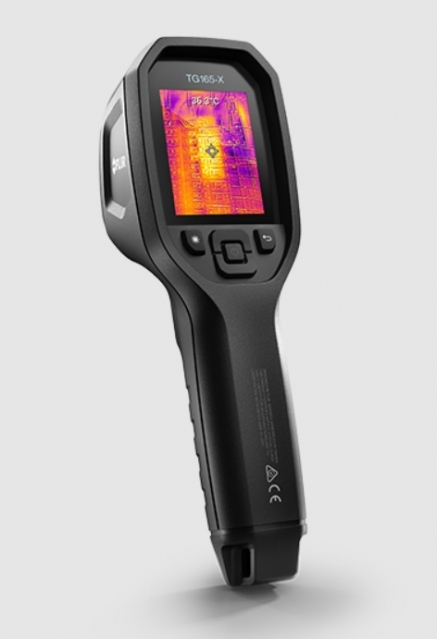

FLIR TG165-X

• 80 × 60 thermal resolution
• -25°C to 300°C (-13°F to 572°F)
• Interpret images with MSX®, which enhances thermal images with crisp visual details

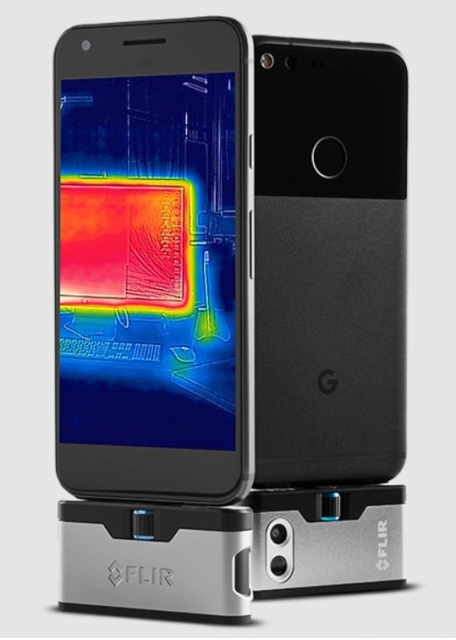

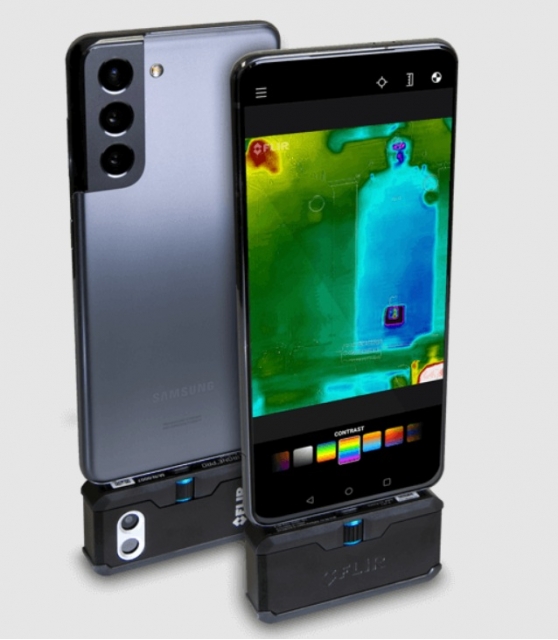

FLIR ONE PRO THERMAL CAMERA FOR SMARTPHONE

• 160 × 120 native resolution, 480 × 360 super resolution
• Measure temperatures up to 400°C (752°F)
• Flir OneFit adjustable height connector


FLIR SI2-PRO ACOUSTIC CAMERA FOR PARTIAL DISCHARGE DETECTION, PRESSURIZED LEAK DETECTION AND MECHANICAL FAULT DETECTION

• Mechanical fault detection for early identification of bearing problems, preventing costly downtime
• Quantify leak rate and cost of industrial gas and compressed air leaks, to prioritize repair and calculate savings
• On-camera and in-software severity assessment and type classification of partial discharge (PD) issues
• Automatic frequency tuning, 8x zoom, 12 MP digital camera,
• IP54 rating, and a QR code reader


FLIR SI2-LD ACOUSTIC CAMERA FOR AIR LEAK DETECTIONS AND MECANIC FAULTS BEARING

• Detects, locates, and measures compressed air and gas leaks;
• including bearing fault detection, from up to 200 m (656 ft) away
• Built-in measurement and cost analysis for industrial gases including ammonia, hydrogen, CO2, methane, helium, and argon
• One-handed operation with automatic tuning, 8x zoom, and a 12 MP digital camera
• Mechanical fault mode, automatic selection, and optimization of filters simplifies finding critical mechanical issues, such as bearing
• faults

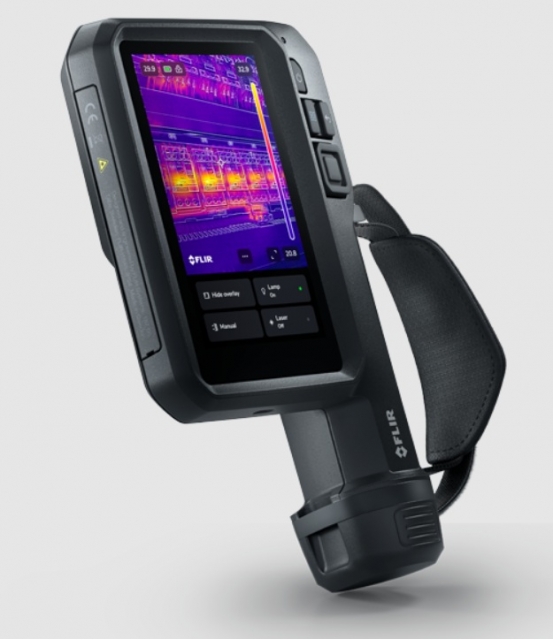

FLIR I34 INFRARED CAMERA WITH APPLICATION 240X320PXL

• App-Enabled Thermal Imaging Camera
• 240 × 320 thermal resolution
• <40 mK NETD

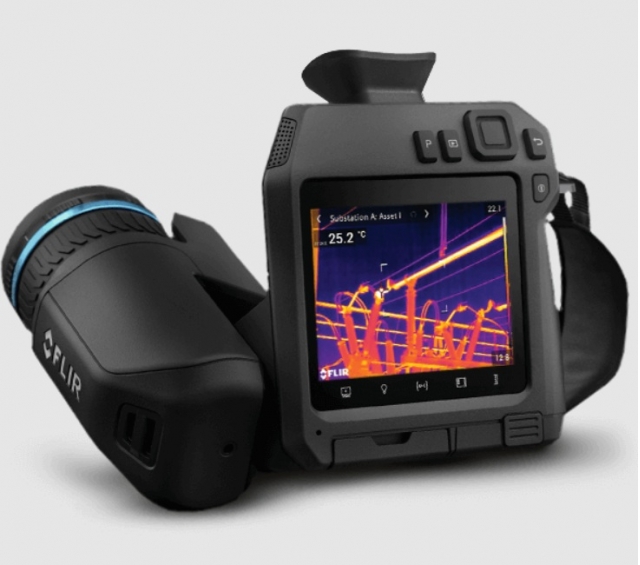

FLIR T840 INFRARED CAMERA

• 464 × 348 thermal resolution
• Measures temperatures up to 2000°C (3632°F)
• 1-Touch Level/Span adjustable contrast


FLIR GF77 GAS EMISSION CAMERA FOR METHANE, SULFUR HEXAFLUORIDE (SF6), ETHYLENE, AMMONIA

• Detect Gas Leaks at Substations and More
• The FLIR GF77 is a groundbreaking uncooled optical gas imaging camera
• with interchangeable lens options that detect methane, sulfur hexafluoride (SF6), ethylene, ammonia, and other gas emissions.

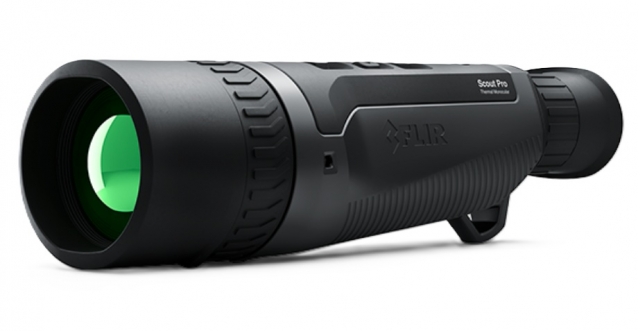

FLIR SCOUT PRO III II
