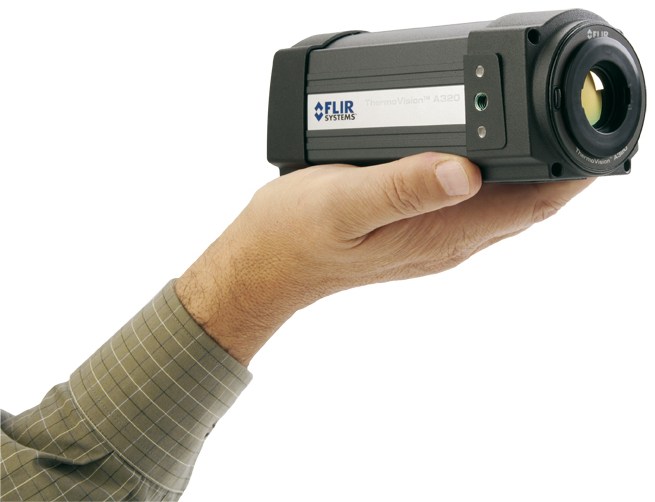

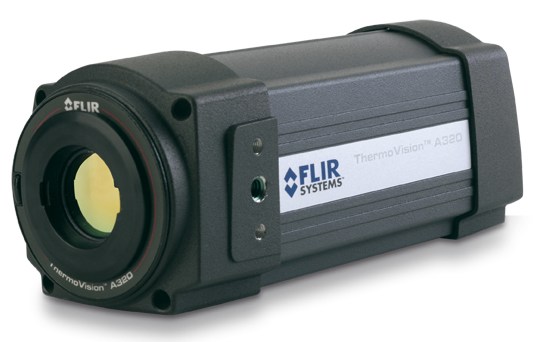

Flir A300 A310 Infrared Thermovision Camera for Indusrtrial Automation
OBSOLET PRODUCT ( * OUT OF USE )

FLIR A300

FLIR A310

Measurement analysis

Spotmeter

N/A

10

Area

N/A

10 boxes with max./min./average/position

Isotherm

N/A

1 with above/below/interval

Measurement option

N/A

Measurement Mask Filter Schedule response: File sending (ftp), email (SMTP)

Difference temperature

N/A

Delta temperature between measurement functions or reference temperature

Reference temperature

N/A

Manually set or captured from any measurement function

Atmospheric transmission correction

N/A

Automatic, based on inputs for distance, atmospheric temperature and relative humidity

Optics transmission correction

N/A

Automatic, based on signals from internal sensors

Emissivity correction

N/A

Variable from 0.01 to 1.0

Reflected apparent temperature correction

N/A

Automatic, based on input of reflected temperature

External optics/windows correction

N/A

Automatic, based on input of optics/window transmission and temperature

Measurement corrections

N/A

Global and individual object parameters

Alarm

Alarm functions

N/A

6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer

Alarm output

N/A

Digital Out, log, store image, file sending (ftp), email (SMTP), notification

Ethernet

Ethernet

Control and image

Control, result and image

Ethernet, protocols

TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP

Ethernet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP

Ethernet, image streaming

16-bit 320 x 240 pixels at 3 Hz
- Radiometric

16-bit 320 x 240 pixels at 7-8 Hz
-Radiometric

Imaging and optical data

Field of view (FOV) / Minimum focus distance

25° × 18.8° / 0.4 m

Lens identification

Automatic

Thermal sensitivity/NETD

< 0.05°C at +30°C / 50 mK

Focus

Automatic or manual (built in motor)

F-number

1.3

Image frequency

30 Hz

Zoom

1-8× continuous, digital, interpolating zooming on images

Detector data

IR resolution

320 × 240 pixels

Detector pitch

25 µm

Detector time constant

Typical 12 ms

Focal Plane Array (FPA) / Spectral range

Uncooled microbolometer / 7.5-13 µm

Measurement

Object temperature range

-20 to +120°C
0 to +350°C

Accuracy

±2°C or ±2% of reading

Set-up

Color palettes

Color palettes (BW, BW inv, Iron, Rain)

Set-up commands

Date/time, Temperature°C

Storage of images

Image storage type

Built-in memory for image storage

File formats

Standard JPEG, 16-bit measurement data included

Composite video

Video

Composite video output, PAL and NTSC compatible

Video, standard

CVBS (ITU-R-BT.470 PAL/SMPTE 170M NTSC)

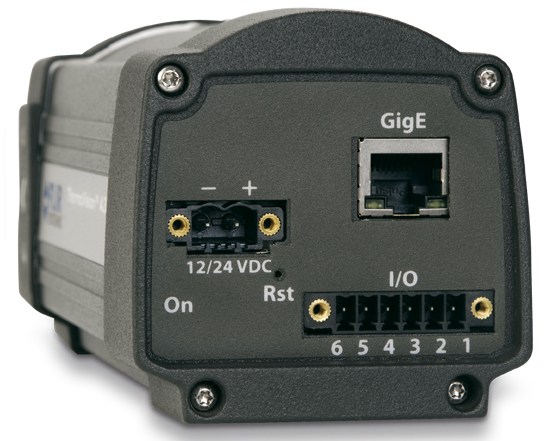

Digital input/output

Digital input

2 opto-isolated, 10-30 VDC
