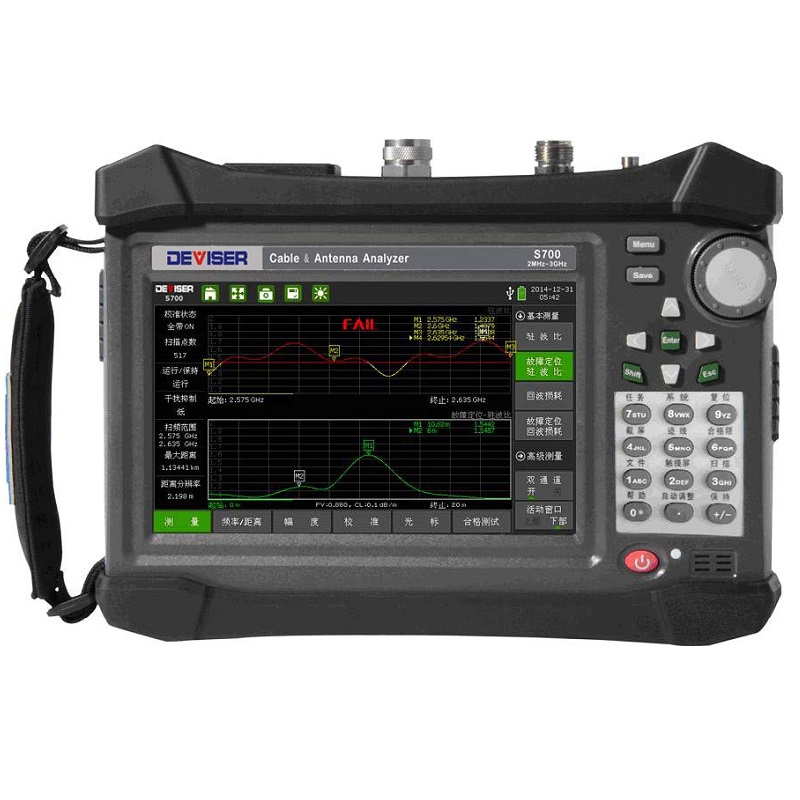

Deviser S700 Series Cable & Antenna Analyzer

Code: Deviser S700




Datasheet PDF, 1.53 Mb

Description

The proliferation of wireless networks has placed increased demands on wireless professionals and contractors, who install, maintain and troubleshoot wireless communication networks. The majority of problems in wireless network installation and performance often occur within the base station infrastructure consisting of the cable and antenna system and associated RF connectors. Compounding the problem, often times cell sites are located in rural or difficult to access locations. Designed specifically for carriers, wireless professionals and contractors who install, maintain and troubleshoot wireless communications networks, the E7000 Series of Cable & Antenna Analyzers provide all necessary measurement functions and performance to accurately diagnose and verify the site½s cable and antenna system and RF connectors, as well as basic fiber-feedline testing.



Features:

  • Handheld, lightweight, field-proven design withstands harsh environments and lighting conditions
  • Easily set up measurements with over 100 preset wireless frequency bands and cable types
  • Reduce test time with dual measurement display to make two measurements simultaneously
  • Detect signal degradation and system performance over time with trace overlay
  • Instant Pass/Fail status
  • Manage your measurement data and test setups with Measurement Center Software
  • Intuitive touchscreen user interface for easier, faster measurements
