Power Quality Analyzers | HT ITALIA

Results 1 - 7 (total: 7) Page    |     1

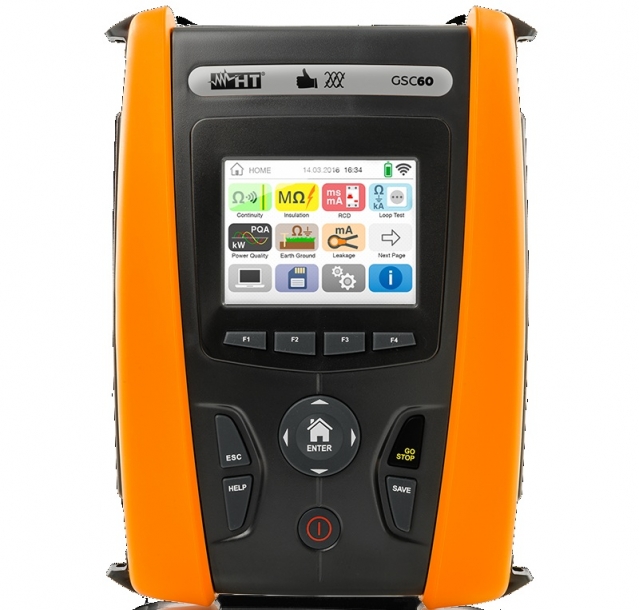

HT GSC60 MULTIFUNCTION ELECTRICAL INSTALLATION TESTER WITH POWER QUALITY ANALYSIS

• Insulation with voltage 50, 100, 250, 500, 1000VDC
• Three-phase Power quality and Energy consumption analysis
• 632 parameters can be recorded for over two months
• Voltage/current vector diagram
• Voltage/current waveforms
• Tables or histograms of Harmonics and THD%
• Integrated WiFi connection and compatibility with HTANALYSIS App

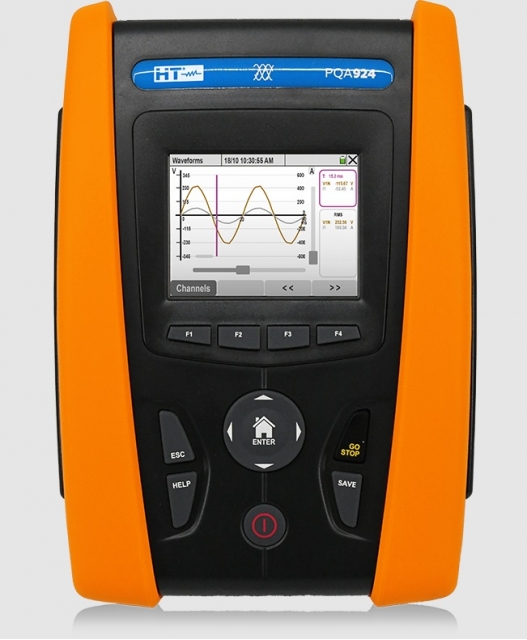

HT PQA924 CLASS S POWER QUALITY AND ENERGY ANALYZER

• AC voltage in single-phase and three-phase systems
• AC current in single-phase and three-phase systems
• Cosphi, Power Factor, K-Factor
• Voltage unbalance
• Flicker
• Active, Reactive, and Apparent power/energy
• Voltage and current harmonic amplitude and phase up to the 63rd order with THD% calculation


THREE-PHASE POWER QUALITY ANALYZER HT PQA820

• 3 system types: Single-phase, three-phase 3-wire, three-phase 4-wire.
•  Configurable directly from Smartphone or Tablet.
•  Fast trips and detailed zoom of all sizes.
•  Real Time.
•  Energy consumption logger.
•  383 parameters can be displayed simultaneously.
•  Technology and absolute simplicity.
•  Harmonics Jump function.


SINGLE/ THREE-PHASE NETWORK AC CURRENT DATA LOGGER HT ITALIA XL421/ XL422

• TRMS AC current measure up to 2500A
• Recording with sampling programmable period
• Manual activation of recording
• RS-232 interface
• Programming with DATALINK software


SINGLE/ THREE-PHASE NETWORK AC VOLTAGE DATA LOGGER HT ITALIA XL423/ XL424

• TRMS AC Voltage measure up to 600V
• Recording with sampling programmable period
• Manual activation of recording
• RS-232 interface
• Programming with DATALINK software



Obsolete products ( * out of use )

POWER QUALITY ANALYZER FOR THREE PHASE NETWORK HT ITALIA PQA823/ PQA824

• TRMS P-N, P-P, P-PE voltage measures (5 inputs)
• TRMS current on phases and neutral (4inputs)
• Harmonic analysis of voltage and current up to 49th component
• Vectorial diagram of voltages and currents
• Flicker analysis (Pst, Plt) in compliance to EN50160
• 5 predefined recordings of parameters
• TFT colour display with "touch screen"
• USB interface for PC connection


HANDHELD POWER QUALITY ANALYZER FOR MONO AND THREE-PHASE NETWORKS HT ITALIA VEGA78

• TRMS P-N, P-P, P-PE voltage measures (5 inputs)
• TRMS current on phases and neutral (4inputs)
• Active, reactive and apparent powers measures
• Active, reactive and apparent energies measures
• Harmonic analysis of voltage and current up to 49th component
• TFT colour display with "touch screen"
• USB interface for PC connection
